Rip Saw Machine - VH-MJ163 Single/Multi Rip Saw

Rip Saw Machine - VH-MJ163 Single/Multi Rip Saw

model: VH-M163
Price Terms: FOB, CIF
Minimum Order: One piece
Payment Terms: T/T, Others


VH
-MJ163


VH-MJ163



SPECIFICATION AND MODELMJ163C
Max. Saw blade diameter (mm)>Φ 400
Max. Working width (mm)——
Max. working thickness (mm)80
Cutting width (mm)410
Main spindle revolution (r/min)3300
Spindle diameter (mm)>Φ 50.8
Feeding speed (m/min)7-19

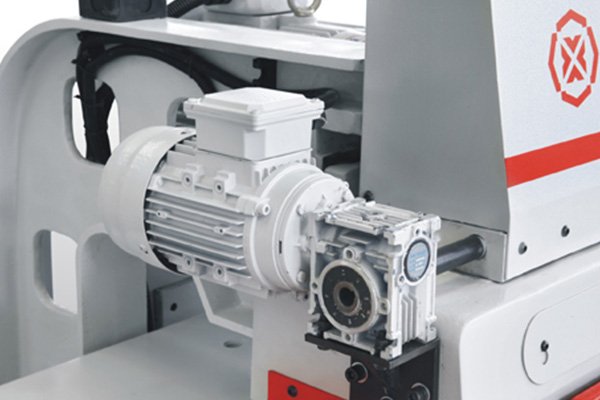

Feeding motor power (kw)1.5
Main motor power (kg)7.5
Lubricate pump motor power (w)20
Total power (kw)9.02
Working tabie sizer (mm)>1720>x912
Dimension (mm)>1950x1920x1300
Net weight (kg)1100

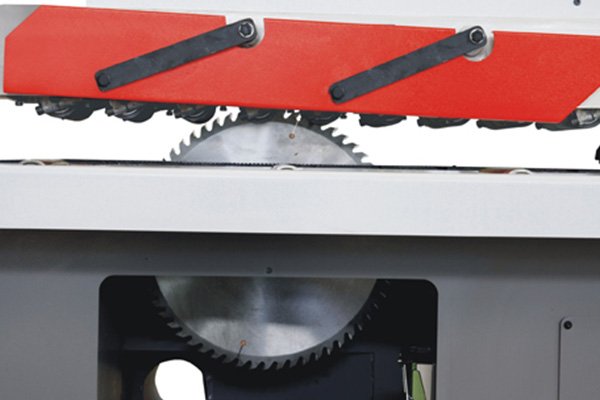

Saw blade under the working surface, so that the process of cutting more secure.

Auxiliary roller
8 sets of pressing wheel device to ensure the stability of the wood in the conveying process.

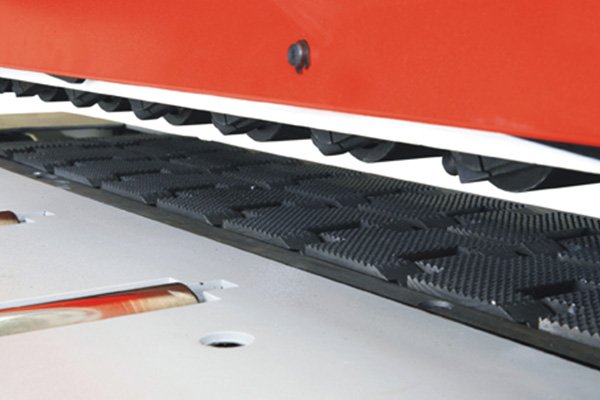

The DOUBLE-BRACK chain conveyer has wide working surface so that the material can be straightly, Precisely and smoothly.



Automatic lubrication
Automatic controlled oil pump provides lubrication to all major parts to extend the machine service life.



Powered elevation device (OPtion)

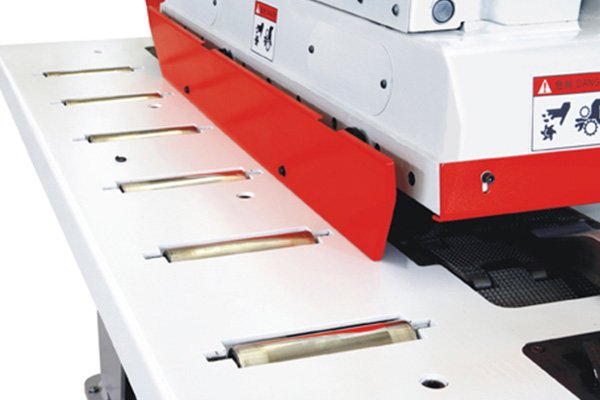

Worktable internal roller,convenience forprocessing and feeding back of big board.



Accurate fence and lock systemThe cast iron fence slide on the hard-chromium treatment round bar together with the lock system,that is providing accurate reading and position of the.

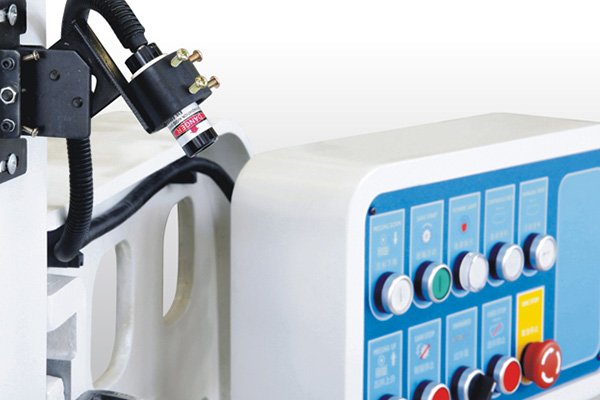

Lnfred alignm ent devince can enable the saw to find its accurate position effciency.

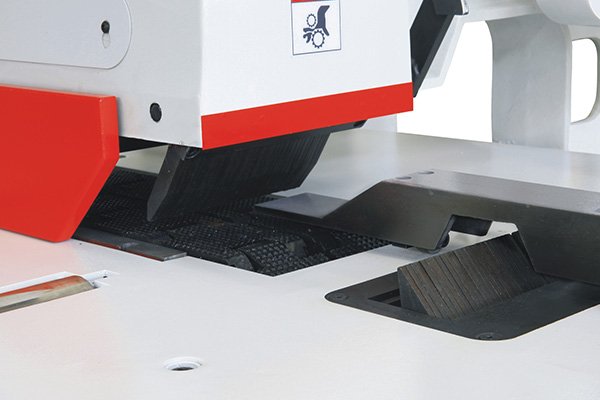

Rebound prevention device can protect operators thorughly.
